Full automatic NC computer thin knife slitting and creasing machine

China Full automatic NC computer thin knife slitting and creasing machine supplier
Full automatic NC computer thin knife slitting and creasing machine supplier Full automatic NC computer thin knife slitting and creasing machine supplier

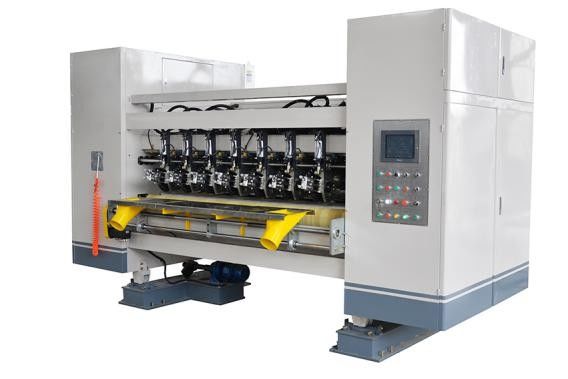

Large Image :  Full automatic NC computer thin knife slitting and creasing machine

Product Details:

Place of Origin: CHINA
Brand Name: JIALONG
Certification: CE ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: standard export package
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 sets/month
Detailed Product Description



Full automatic NC computer thin knife slitting and creasing machineFull automatic NC computer thin knife slitting and creasing machine

Full automatic NC computer thin knife slitting and creasing machine

  1. Design speed: 250m/min.Width:1800mm
  2. Memory of 999 orders,could change order automatically or manually but no need to stop the machine.
  3. Quickly change order, within 3-8s. Application of two machines,could change order but no need to reduce the speed.
  4. Could follow the line’s speed automatically,make sure that be synchronize with the corrugated line.Could connect with production management system,with high compatibility.
  5. Use higher quality imported industry computer and PLC to constitute Hypernym-hyponym computer controlling system.
  6. There are three scorer types: convex-concave(single wall), convex-concave(double wall), and convex-flat,these three types could be alternated electrically. Scoring wheel’s deep or shallow could be controlled automatically by computer.With good line shape and easy to be bend.
  7. Adopts thin type tungten steel alloy blade,sharp and long using life,more than 8 million meters.
  8. Computer controlled auto grinding,manual grinding also could be applicable.Could grinding the blade when the machine is running,can increase efficiency.
  9. Adopts imported synchronous belt device,with higher precision,long using life,and lower noise.

      Scoring is electrical controlling,upper and down scorer could be adjusted at the same time,down scorer could individually fine running.



TECHNICAL PARAMETERS:

Model 1800
Max slitting width (mm) 1600
Min slitting width (mm) 140
Min scoring width (mm) 135
Scoring height (mm) 0-12
Blade (mm) φ200×122×1.2
Blade & Scoring Composed Type 5 BLADE 8 LINES
Power (KW) 7.9
Machine dimension (mm) 3500X1200X2000
